How Does an Active Filter Work?

Modern grids demand more than static solutions. While passive filters act as "fixed tuning forks" for predefined harmonics, they fail against dynamic distortions from VFDs, EV chargers, and renewables. Enter YTPQC-AHF: a three-level topology "grid surgeon" that excises 2nd–50th harmonics in real-time while restoring power factor and phase balance – all within a single adaptive system.

The Core Principle: Real-Time Harmonic Cancellation

Active Harmonic Filters (AHFs) like YTPQC-AHF operate on a "counter-injection" principle:

1. Detection: Continuously monitor grid current using high-speed sensors (up to 256 samples/cycle).
2. Analysis: Decompose harmonics using Fast Fourier Transform (FFT) and Instantaneous Reactive Power Theory algorithms.
3. Compensation: Generate anti-phase currents through 3-level IGBT inverters to neutralize harmonics.
4. Adaptation: Adjust output dynamically via DSP+FPGA controllers (response time ≤50 μs).

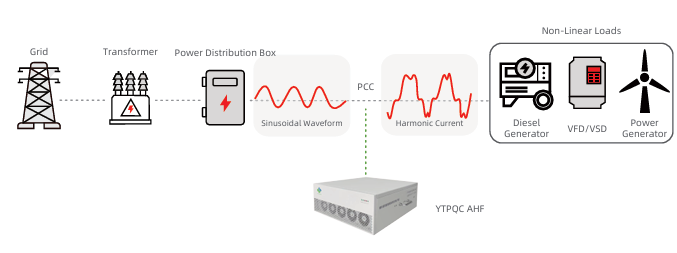

YTPQC-AHF’s 3-Level Topology: A Game Changer

Multifunctional Power Quality Management

While neutralizing harmonics (2nd–50th order), YTPQC-AHF simultaneously addresses:

✅ Reactive Power Compensation

→ Adjusts power factor from 0.7 lagging to 0.98 near-unity

→ Reduces transformer KVA demand by 18-25%

✅ Voltage Stabilization

→ Limits fluctuations to ±1% (vs. ANSI C84.1’s ±5% allowance)

→ Mitigates voltage flicker from arc furnaces/welders

✅ 3-Phase Load Balancing

→ Reduces neutral current by 95% in IT/data center 3P4W systems

→ Eliminates transformer derating costs

✅ Sub-Harmonic Suppression

→ Filters sub-2nd order harmonics from renewables (e.g., 0.5–1.9th)

Why Engineers Choose YTPQC-AHF

1.     Resonance-Proof Design

→ Patented anti-oscillation algorithm prevents harmonic amplification with capacitor banks.

2.Smart Cooling Intelligence

→ PWM-controlled fans switch to 45 dB silent mode during light loads (ideal for hospitals).

2.     Global Compliance Built-In

→ Pre-configured profiles for IEEE 519, ER G5/4, and IEC 61000-3-6.

3.     Future-Ready Architecture

→ IoT-ready with Modbus/TCP, enabling predictive maintenance via cloud analytics.
